Fire Protection Gaskets for Metal Boxes (Product 30)
Top selling, innovative intumescent fire protection gaskets for metal boxes. Electrical protection gaskets for BESA or universal boxes, where conduits pass through fire-rated ceilings and walls. BESA or universal boxes must have intumescent gaskets fitted to stop fire penetrating. Furthermore, metal socket boxes must have gaskets installed where they’re back-to-back. This also includes if cables pass through walls. Our extensive range of expanding intumescent gaskets and linings are ideal for a wide range of standard electrical boxes.
Lightweight and flexible, fire protection gaskets for metal boxes can accommodate wires and cables by cutting holes where required. Trimmed to size to fit most socket boxes, with self-adhesive backing for easy application.

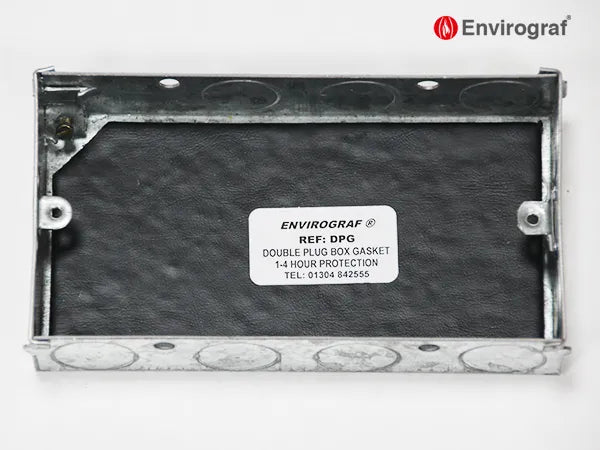

Intumescent gasket which adheres inside recessed metal boxes housing electrical wires. Suitable for either single or double socket boxes placed in brickwork, blockwork or plasterboard walls. An acoustic version of this gasket is also available.
Tested to BS476 Part 22 (1987) and achieved 4 hours in solid walls and 71 minutes in cavity walls. Achieved 90 minutes when tested to EN1364-1 2015.
Our electrical and plumbing products meet IET wiring regulations as well as Document B & E of Building Regulations tested to European and British Standards. Browse our full range of electrical and plumbing products.
ADVANTAGES
Solutions for both plastic and metal boxes, providing up to 4 hours protection- Compatible with single or double socket or switch boxes, BESA boxes, universal conduit boxes and ceiling roses
Complies with IEE Wiring Regulations, bringing standard boxes in line with Document B
ORDER REFERENCES / SIZES
GASKETS FOR STANDARD METAL BOXES
REF DESCRIPTION
BEG Standard BESA Boxes
DPG Gasket for Double Metal Box
SPG Gasket for Single Metal Box
- Application Instruction
- Downloads
- APPLICATION INSTRUCTIONS Intumescent gaskets are essential in metal or plastic boxes where cables pass back through a wall. Gaskets must be fitted to all dry lining boxes in partition walls. Without these gaskets fire can spread into the partition within 4-5 minutes. Where cables run through back to back boxes in brick or block walls, flames can pass through within 6 minutes, resulting in a wall or partition only 6 minutes of fire integrity. Gaskets for use inside metal or plastic boxes are made to the size of the box and come with self-adhesive fixing on the back. Once the backing paper has been peeled off the fixing strip, the gasket can be adhered to the inside of the box. Holes can be cut into the gasket with a sharp knife to receive cables, or the gasket can be cut to fit the back of the box if cables are already fitted. Dry lining boxes in walls have two pads per box, made to size and adhered top and bottom. Plasterboard ceiling rose boxes can be protected by means of an intumescent cover which folds up and is passed through the hole in the ceiling. A hole is then cut in the cover to receive the cables, which are then pulled through the cover, box and ceiling before connecting the ceiling rose. Ceiling rose gaskets to fit over the ceiling rose or hook plate should be fitted where more than two cables pass through the ceiling. A hole is made in the gasket through which the cables are passed. The backing paper of the self adhesive fixing strip is then peeled off and the gasket is adhered to the ceiling. The pendant or light fitting can then be fitted. **WARNING** Gaskets are made to fit within socket boxes – do not cut or trim in half.
