Acoustic and Fire Protection Gaskets for Dry Lining Boxes (Product 30)
Acoustic and fire gaskets are designed with intumescent for dry lining boxes. Electrical protection gaskets for BESA or universal boxes, where conduits pass through fire-rated ceilings and walls. BESA or universal boxes must have intumescent gaskets fitted to stop fire penetrating. Furthermore, metal socket boxes must have gaskets installed where they’re back-to-back, this also includes if cables pass through walls. Our extensive range of expanding intumescent gaskets and linings are ideal for a wide range of standard electrical boxes.
This streamlined product, with its double-action design, will help to save lives and combat both airborne and impact sound. It is extremely flexible and easily fitted in seconds for all types of dry lining switches and socket boxes, saving valuable installation time. Provides up to 4 hours of fire protection for electrical sockets fitted into dry lining walls.
Available for multiple sizes to fit into varying socket boxes housing electrical wires. A non-acoustic version of gaskets for dry lining boxes is also available.
Our electrical and plumbing products meet IET wiring regulations as well as Document B & E of Building Regulations tested to European and British Standards. Browse our full range of electrical and plumbing products.
ADVANTAGES
Solutions for both plastic and metal boxes, providing up to 4 hours protection.
Compatible with single or double socket or switch boxes, BESA boxes, universal conduit boxes and ceiling roses
Complies with IEE Wiring Regulations, bringing standard boxes in line with Document B
ORDER REFERENCES / SIZES
FIRE AND SOUND TRAP FOR ELECTRICAL BOXES
The Envirograf® Product 30 range has been extended with a range of Fire and Sound Traps (FST acoustic and fire protection sleeves for electrical boxes). These have integrated intumescent material for use in timber-framed houses, etc. The FST products are easy to install and they will fit all cavity depths, for single/double, shallow/deep switch/socket boxes.
REF DESCRIPTION
EXTERNAL
FST/EXT/S/S&D Fire & Sound Trap External to fit Single Shallow & Deep Boxes*
FST/EXT/D/S&D Fire & Sound Trap External to fit Double Shallow & Deep Boxes*
* The two products above are supplied with fixing pins. No pins are necessary for the internal products shown below.
INTERNAL

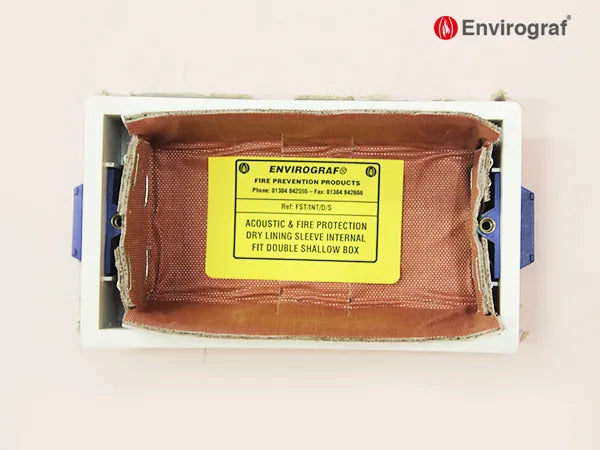

FST/INT/S/S Fire & Sound Trap Internal to fit Single Shallow Boxes
FST/INT/D/S Fire & Sound Trap Internal to fit Double Shallow Boxes
FST/INT/S/D Fire & Sound Trap Internal to fit Single Deep Boxes
FST/INT/D/D Fire & Sound Trap Internal to fit Double Deep Boxes
FIRE TEST PERFORMANCE
Gaskets tested to BS476 Parts 20 & 22, achieving up to 4 hours fire protection in metal boxes.
Gaskets tested to EN1365-2 (1999), NEN6069 (2005), and EN1364-1 (1999), achieving up to 84 minutes protection in plastic boxes.
Acoustic fire and sound trap linings tested to BS476 Part 22 (1987), achieving 4 hours protection in solid walls and 71 minutes in cavity walls.
Acoustic criteria tested to BS476, Parts 20/22, EN 1364-1 (1999) & EN 1365-2 (1999).
- Application Instruction
